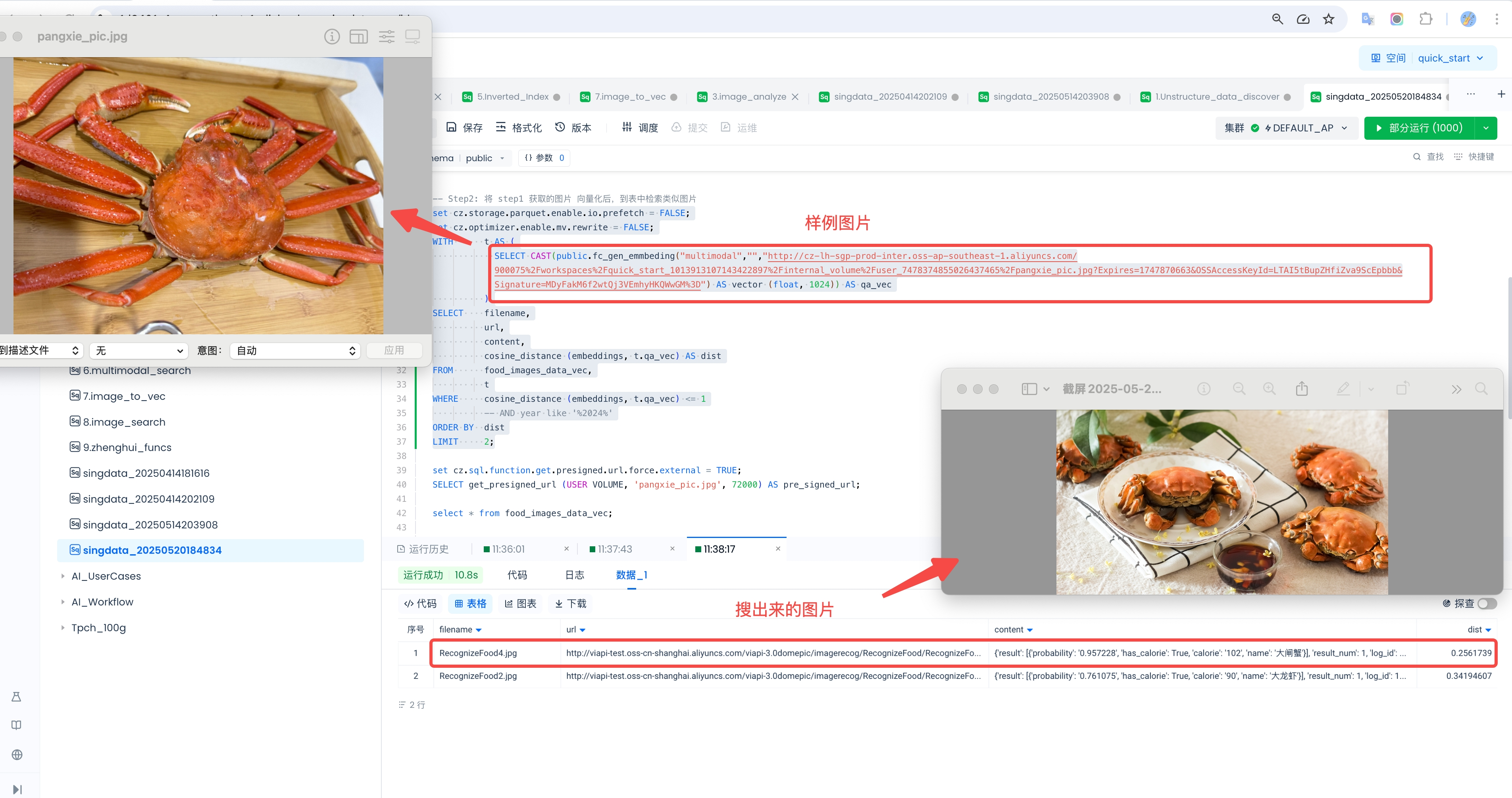

Objective: Use the Alibaba Cloud Bailian platform's Embedding function to vectorize text and image file data, enabling image-to-image search scenarios. The effect is shown below:
⚠️ Note: To complete this example, you need:
Docker installed (mainly to ensure the development environment is consistent with the environment where functions run on the cloud)
An Alibaba Cloud account with a Bailian platform API-KEY enabled. See Alibaba Cloud Bailian
An API connection already created. See: Create API Connection
Start the Docker container: This container is based on the manylinux2014_x86_64 image and configured to use Python 3.10.
[Local]# docker run -it --name cz_func --env PATH="/opt/python/cp310-cp310/bin:$PATH" quay.io/pypa/manylinux2014_x86_64:2022-10-25-fbea779 bash
If the container has stopped, use the following commands to start and enter:
Start the container:
# docker start cz_func
Enter the container:
# docker exec -it cz_func bash
Create folder embeddings under the /root directory:
[root@docker root]# cd /root ; mkdir embeddings
[root@docker embeddings]# cd embeddings
[root@docker embeddings]# touch gen_embeddings.py
The program code in gen_embeddings.py is as follows:
import os
from cz.udf import annotate
from openai import OpenAI
import json
@annotate("*->string")
class get_embeddings(object):
def evaluate(self, model_type, input_string, api_key, model_name, dim=None):
if model_type == "text":
# Initialize OpenAI client with the API key provided by the user
client = OpenAI(
api_key=api_key,
base_url="https://dashscope.aliyuncs.com/compatible-mode/v1"
)
input_data = input_string
completion = client.embeddings.create(
model=model_name, # Use the text model name provided by the user
input=input_data,
dimensions=int(dim), # Specify vector dimensions
encoding_format="float"
)
result_json = json.loads(completion.model_dump_json())
embedding_vector = result_json['data'][0]['embedding']
elif model_type == "multimodal":
import dashscope
image = input_string
dashscope.api_key = api_key # Use the API key provided by the user
input = [{'image': image}]
resp = dashscope.MultiModalEmbedding.call(
model=model_name, # Use the multimodal model name provided by the user
input=input
)
result_json = json.loads(json.dumps(resp.output, ensure_ascii=False, indent=4))
embedding_vector = result_json['embeddings'][0]['embedding']
else:
return "Not Valid Model Type"
if len(embedding_vector) >= 1:
return str(embedding_vector)
else:
return "Not Valid"
Add command-line entry point:
if __name__ == "__main__":
import argparse
parser = argparse.ArgumentParser(description="Get Embeddings using OpenAI or DashScope")
parser.add_argument('--model_type', required=True, help='Model type: text or multimodal')
parser.add_argument('--input_string', required=True, help='The input string or image path')
parser.add_argument('--api_key', required=True, help='Your API key')
parser.add_argument('--model_name', required=True, help='Model name')
parser.add_argument('--dim', default=1536, help='Vector dimensions (only for text models)')
args = parser.parse_args()
embedder = get_embeddings()
result = embedder.evaluate(
model_type=args.model_type,
input_string=args.input_string,
api_key=args.api_key,
model_name=args.model_name,
dim=args.dim
)
print(result)
Step 2: Download Third-Party Libraries
The program depends on the third-party package openai, which needs to be downloaded (the rest os and json are Python built-in libraries and do not need to be downloaded. cz.udf will be added by default when creating the function).
Run the following in the development environment terminal:

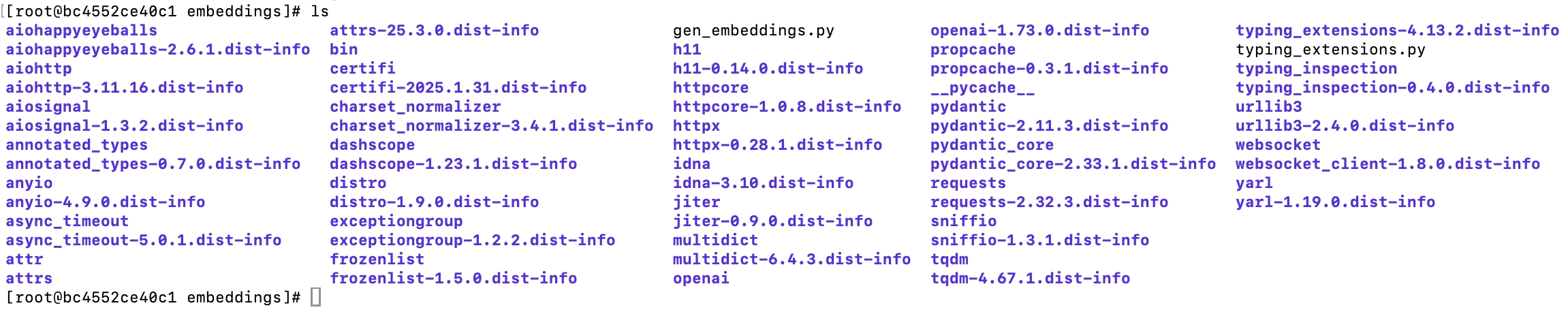

At this point, the directory structure should look like:
Step 3: Local Debugging
Make the following modifications to 3 lines of code, since the cz.udf library is not yet loaded in the current environment:
...
2 #from cz.udf import annotate # Comment out
...
6 #@annotate("*->string") # Comment out
...
The API_KEY is the Alibaba Cloud Bailian platform API-KEY. You need to register an Alibaba Cloud account and obtain it here after logging in: Alibaba Cloud Bailian
After commenting out the two lines above, save and exit the editor. Replace the image_url and api_key below with real values and run:
Before running the packaging command, ensure the current directory is the program directory (in this example, /root/embeddings).
[root@docker embeddings]# pwd
/root/embeddings
[root@docker embeddings]# zip -rq ../embeddings.zip ./
[root@docker embeddings]# ls ../
💡 Tip: If your environment does not have the zip command, try installing it with yum install zip. If you encounter issues during installation, refer to the appendix "Errors When Installing Tools."
You will find a embeddings.zip file under the /root directory. Copy this file to the Lakehouse USER VOLUME:
Now the embeddings.zip is in the host's user Downloads directory.

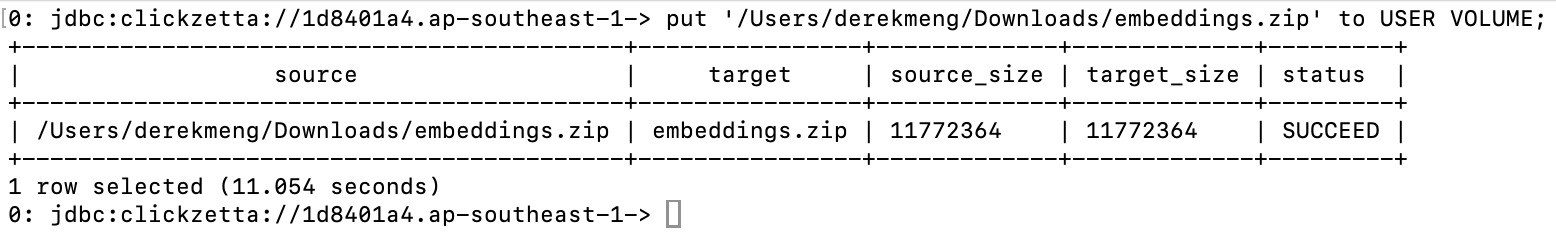

Use the Lakehouse JDBC client (see Lakehouse JDBC Client) to put (upload) the file into the Lakehouse USER VOLUME:
PUT '/Users/derekmeng/Downloads/embeddings.zip' to USER VOLUME;
Step 5: Create and Use the Function
This step depends on having an API Connection created in advance. See: API Connection
CREATE EXTERNAL FUNCTION public.fc_embeddings
AS 'gen_embeddings.get_embeddings'
USING ARCHIVE 'volume:user://~/embeddings.zip'
connection sg_fc_api_conn
WITH PROPERTIES (
'remote.udf.api' = 'python3.mc.v0'
)
COMMENT 'Examples:
For text: text <input_string> <api_key> <model_name> <dim>
For multimodal: multimodal <input_string> <api_key> <model_name>';

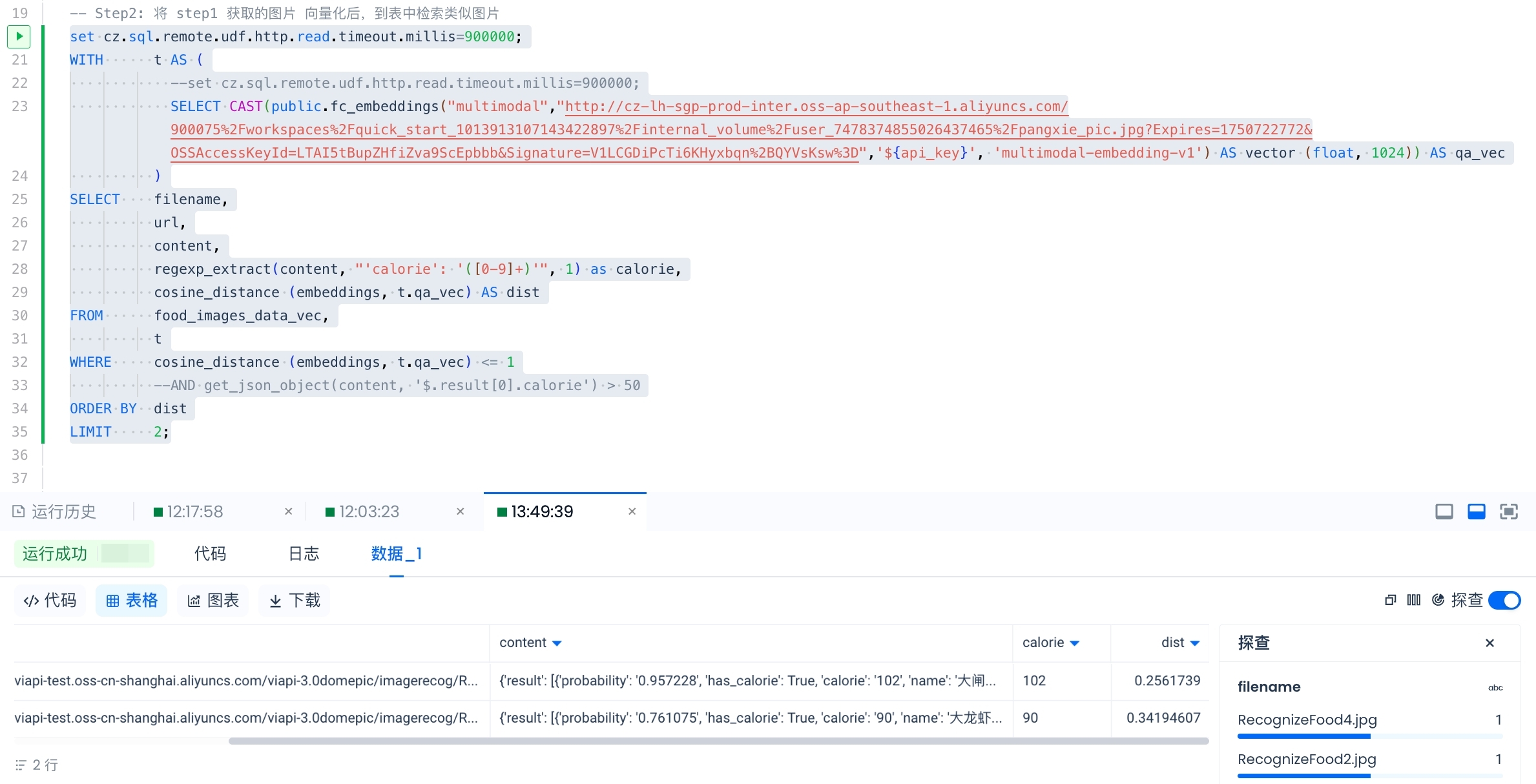

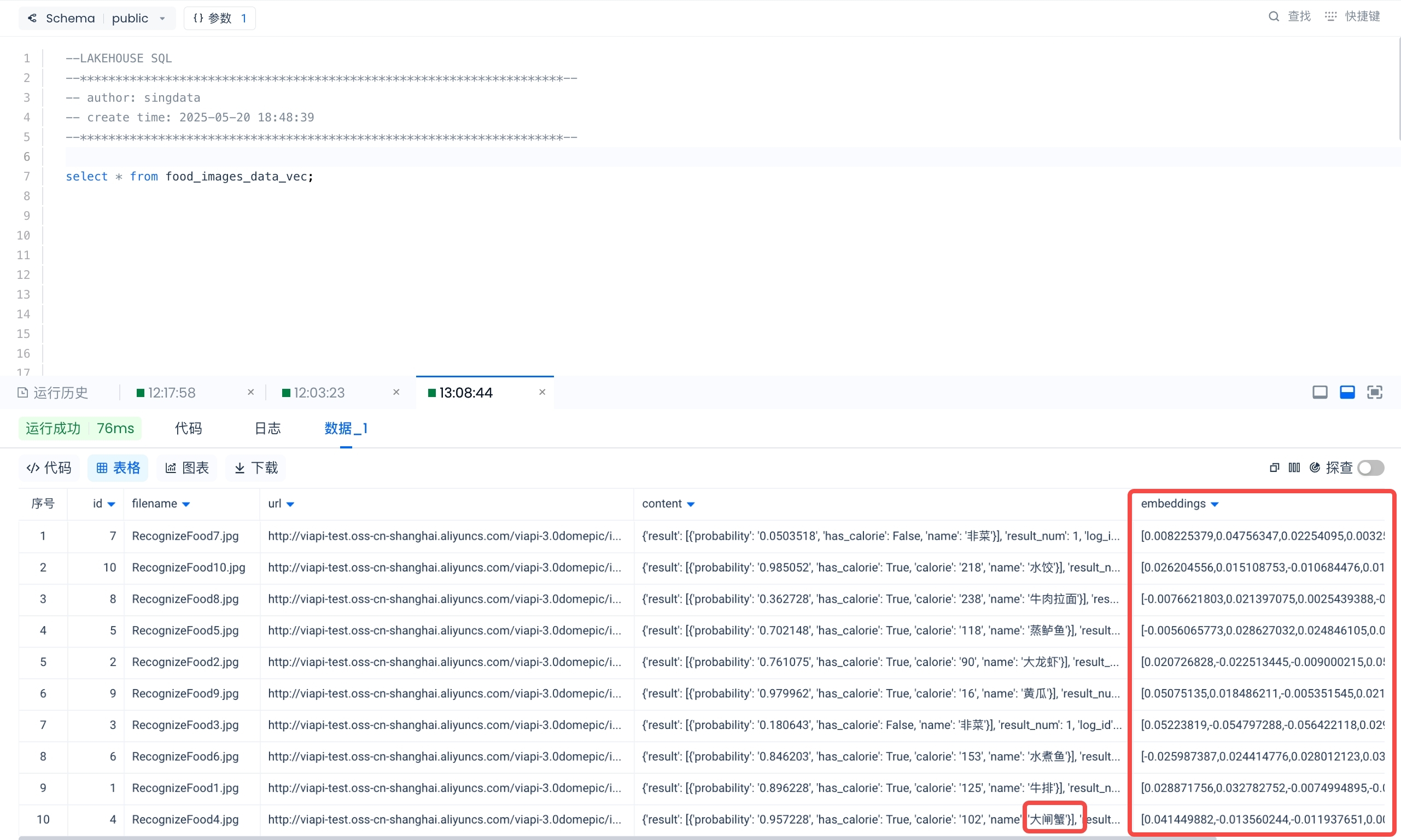

The next steps are the core steps for implementing the image-to-image search feature. This query takes an image URL, vectorizes it, and then compares it against all image vectors in the data table (food_images_data_vec). The contents of the table food_images_data_vec are as follows:
