Version Requirements
| Connector | Spark | Scala |
|---|
| 1.0.0 | 3.4.0 | 2.12.13 |
Getting the Connector
Please contact Lakehouse technical support
Parameter Description
| Parameter | Required | Description |
|---|
| endpoint | Y | The endpoint address to connect to the lakehouse, eg: tmwmzxzs.dev-api.singdata.com |
| username | Y | Username |
| password | Y | Password |
| workspace | Y | Workspace in use |
| virtualCluster | Y | Virtual cluster in use |
| schema | Y | Name of the schema to access |
| table | Y | Name of the table to access |
Data Type Mapping
| Spark Data Type | Lakehouse Data Type |
|---|
| BooleanType | BOOLEAN |
| ByteType | INT8 |
| ShortType | INT16 |
| IntegerType | INT32 |
| LongType | INT64 |
| FloatType | FLOAT32 |
| DoubleType | FLOAT64 |
| DecimalType | DECIMAL |
| BINARYType | BINARY |
| DateType | DATE |
| TimestampNTZType | Timestamp_NTZ |
| TimestampType | TimestampType_LTZ |
| ArrayType | Array |
| MapType | Map |
| StructType | Struct |
Usage and Testing
Preparation
Local Test pom Dependency
<properties>
<spark.version>3.4.0</spark.version>
<scala.version>2.12.13</scala.version>
<scala.binary.version>2.12</scala.binary.version>
</properties>
<dependencies>
<dependency>
<groupId>org.apache.spark</groupId>
<artifactId>spark-core_${scala.binary.version}</artifactId>
<version>${spark.version}</version>
<exclusions>
<exclusion>
<artifactId>log4j-slf4j2-impl</artifactId>
<groupId>org.apache.logging.log4j</groupId>
</exclusion>
<exclusion>
<artifactId>log4j-1.2-api</artifactId>
<groupId>org.apache.logging.log4j</groupId>
</exclusion>
<exclusion>
<artifactId>log4j-api</artifactId>
<groupId>org.apache.logging.log4j</groupId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.apache.spark</groupId>
<artifactId>spark-sql_${scala.binary.version}</artifactId>
<version>${spark.version}</version>
</dependency>
<dependency>
<groupId>org.apache.spark</groupId>
<artifactId>spark-catalyst_${scala.binary.version}</artifactId>
<version>${spark.version}</version>
</dependency>
<dependency>
<groupId>org.scala-lang</groupId>
<artifactId>scala-compiler</artifactId>
<version>${scala.version}</version>
</dependency>
<dependency>
<groupId>org.scala-lang</groupId>
<artifactId>scala-reflect</artifactId>
<version>${scala.version}</version>
</dependency>
<dependency>
<groupId>org.scala-lang</groupId>
<artifactId>scala-library</artifactId>
<version>${scala.version}</version>
</dependency>
<dependency>
<groupId>com.clickzetta</groupId>
<artifactId>spark-clickzetta</artifactId>
<version>1.0.0-SNAPSHOT</version>
<scope>system</scope>
<systemPath>${package_path_prefix}/spark-clickzetta-1.0.0-SNAPSHOT-jar-with-dependencies.jar</systemPath>
</dependency>
</dependencies>
# Note ${package_path_prefix} needs to be replaced with the local downloaded jar package path
Create Lakehouse Table
CREATE TABLE spark_connector_test_table(
v_bool boolean,
v_byte byte,
v_short short,
v_int int,
v_long long,
v_float float,
v_double double,
v_string string,
v_decimal decimal(10,2),
v_timestamp timestamp,
v_date date
);
Using Spark to Write Data to Lakehouse
Write Restrictions (Follow bulkload write restrictions)
- PK table writing is not supported
- Must write all fields, partial field writing is not supported
DataFrame Writing
val spark = SparkSession.builder
.master("local")
.appName("ClickzettaSourceSuite")
.getOrCreate()
val rowSchema = StructType(
List(
StructField("v_bool", BooleanType),
StructField("v_byte", ByteType),
StructField("v_short", ShortType),
StructField("v_int", IntegerType),
StructField("v_long", LongType),
StructField("v_float", FloatType),
StructField("v_double", DoubleType),
StructField("v_string", StringType),
StructField("v_decimal", DecimalType.apply(10, 2)),
StructField("v_timestamp", TimestampType),
StructField("v_date", DateType)
)
)
// bulkLoad require full field writing
val data = spark.sparkContext.parallelize(
Seq(
Row(true,
1.byteValue(),
1.shortValue(),
1,
1L,
1.1f,
1.1d,
"001",
BigDecimal(100.123),
Timestamp.valueOf("2024-05-12 17:49:11.873533"),
Date.valueOf("2024-05-13")
)
)
)
val df = spark.createDataFrame(data, rowSchema)
df.write.format("clickzetta")
.option(ClickzettaOptions.CZ_ENDPOINT, endpoint)
.option(ClickzettaOptions.CZ_USERNAME, username)
.option(ClickzettaOptions.CZ_PASSWORD, password)
.option(ClickzettaOptions.CZ_WORKSPACE, workspace)
.option(ClickzettaOptions.CZ_VIRTUAL_CLUSTER, virtualCluster)
.option(ClickzettaOptions.CZ_SCHEMA, schema)
.option(ClickzettaOptions.CZ_TABLE, table)
.option(ClickzettaOptions.CZ_ACCESS_MODE, accessMode)
.mode("append")
.save()

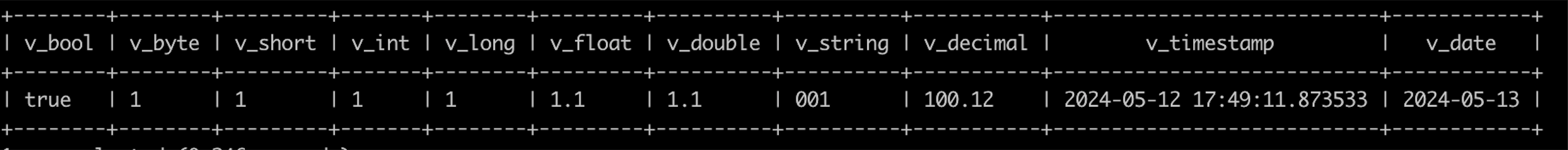

Using lakehouse sqlline to View Data
After running the DataFrame write operation, use the Lakehouse sqlline client to query the table and confirm the written row is present with all field values matching those specified in the Spark code above.
Using Spark to Read Data from Lakehouse
val spark = SparkSession.builder
.master("local")
.appName("ClickzettaSourceSuite")
.getOrCreate()
val readDf = spark.read.format("clickzetta")
.option(ClickzettaOptions.CZ_ENDPOINT, endpoint)
.option(ClickzettaOptions.CZ_USERNAME, username)
.option(ClickzettaOptions.CZ_PASSWORD, password)
.option(ClickzettaOptions.CZ_WORKSPACE, workspace)
.option(ClickzettaOptions.CZ_VIRTUAL_CLUSTER, virtualCluster)
.option(ClickzettaOptions.CZ_SCHEMA, schema)
.option(ClickzettaOptions.CZ_TABLE, table)
.option(ClickzettaOptions.CZ_ACCESS_MODE, accessMode)
.load()
readDf.printSchema()
val result1 = readDf.select(col("`v_string`"), col("`v_date`")).collect()
println("----------read from df-----------")
for (row <- result1) {
println(row.toString())
}
readDf.createOrReplaceTempView("tmp_spark_connector_test_table")
val result2 = spark.sql("select * from tmp_spark_connector_test_table where v_float = 1.1f;").collect()
println("----------read from sql-----------")
for (row <- result2) {
println(row.toString())
}

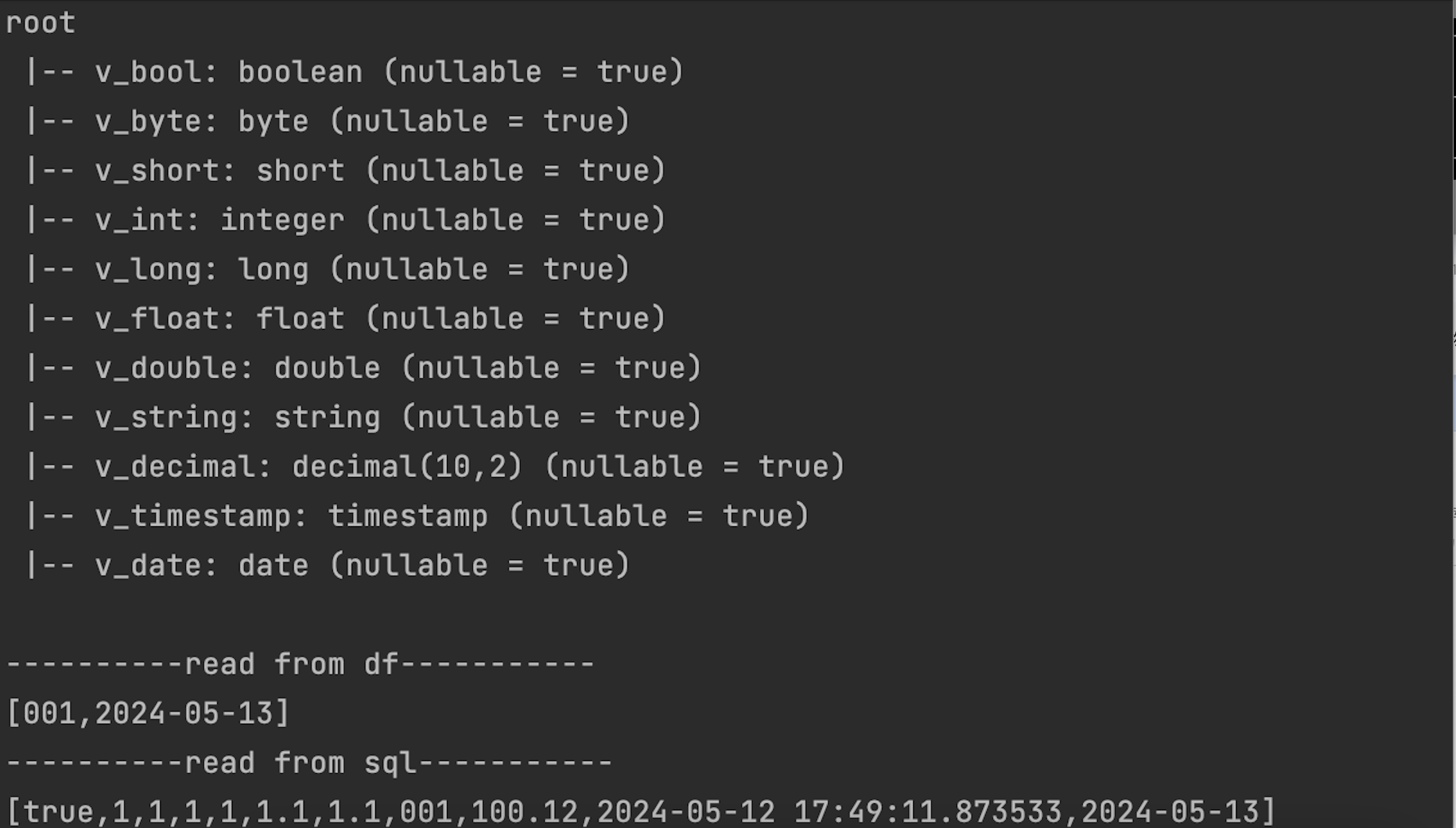

Both the DataFrame select and the SQL query return the expected row, confirming that Spark can read data from Lakehouse successfully.
