Table Stream Change Data Capture

Table Stream is the Change Data Capture (CDC) mechanism of Singdata Lakehouse, used to capture change data of table objects. By defining a Table Stream object, you can record and track data changes based on an existing table.

Quick Guide: Is This What You Need?

If you are familiar with Kafka, you can think of Table Stream as a "consumer offset on a table" -- it records the last version you read, and the next query only returns rows that changed after that point. Unlike a Kafka consumer group, the offset only advances when you consume with DML statements; it will not lose data due to ordinary queries.

Quick Selection:

Scenario	Recommended Solution
Capture row-level changes (INSERT/UPDATE/DELETE) on a table	Table Stream (this document)
Continuously import data from Kafka or OSS into a table	Pipe
Automatically maintain derived tables with aggregated or transformed results	Dynamic Table

Not sure which to use? See the Realtime Data Pipeline Selection Guide for a complete comparison.

What Is Table Stream

Table Stream leverages the multi-version history feature of Lakehouse Table, recording the specified version (or the latest version) of the source table as the initial read position when created. When you query the Table Stream, it returns all change records from the initial offset to the current latest version.

Core Features:

Table Stream does not store actual data; it only records and maintains the data version offset of the source table
The offset is only updated to the latest data version when Table Stream is consumed using DML statements (INSERT/DELETE/UPDATE/MERGE)
Based on the MVCC mechanism, no additional log storage or complex CDC configuration is required

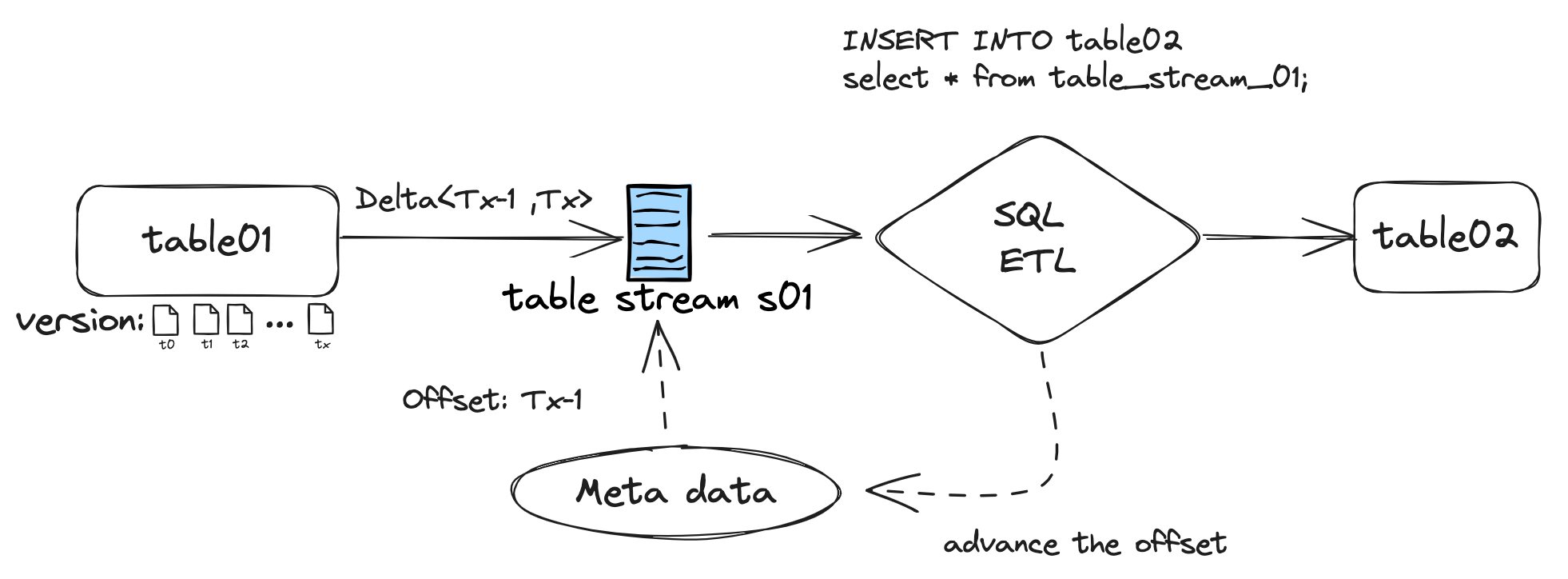

Working Principle

1. Create Table Stream +-- Records the source table's current version as the initial offset 2. DML changes occur on the source table +-- MetaService records new versions +-- Table Stream automatically detects changes 3. Query Table Stream +-- Returns all change records from the initial offset to the latest version 4. Consume Table Stream (DML operation) +-- INSERT INTO target SELECT * FROM stream +-- Offset automatically updates to the latest version

Table Stream Types

Type	Tracking Scope	Applicable Scenarios
STANDARD	All DML changes (INSERT, UPDATE, DELETE, TRUNCATE)	ETL scenarios requiring complete change data capture
APPEND_ONLY	INSERT operations only	Log-type, event-type append-only data scenarios

STANDARD Type Details

The STANDARD type provides row-level changes by joining and processing all delta data changes to provide row-level increments. Delta changes reflect the latest state of the source object, not historical changes.

For example:

If a row is inserted and then updated after the Table Stream's offset, the delta change is the row after the update
If a row is inserted and then deleted after the Table Stream's offset, the delta change is no such row

APPEND_ONLY Type Details

The APPEND_ONLY type only records INSERT operation data. Update and delete operations are not recorded.

For example: 10 rows are initially inserted into the table, then a delete operation removes 5 rows while the offset remains unmoved. The Table Stream still records all 10 rows.

How to Determine Change Types

In STANDARD mode, the __change_type field has four values, regardless of the SHOW_INITIAL_ROWS parameter:

`__change_type`	Meaning	Description
`INSERT`	New row	An INSERT was performed on the source table
`UPDATE_BEFORE`	Old value before update	Appears paired with `UPDATE_AFTER`; `__commit_version` is the old version number
`UPDATE_AFTER`	New value after update	Appears paired with `UPDATE_BEFORE`; `__commit_version` is the new version number
`DELETE`	Deleted row	A DELETE was performed on the source table; retains the field values of the deleted row

An UPDATE operation produces two rows: UPDATE_BEFORE (old value) and UPDATE_AFTER (new value). Both rows have the same id but different __commit_version.

STANDARD Mode Example:

-- Source table executes UPDATE: UPDATE source SET val = 999 WHERE id = 1 SELECT __change_type, __commit_version, id, val FROM my_stream ORDER BY id, __change_type; +-----------------+------------------+----+-----+ | __change_type | __commit_version | id | val | +-----------------+------------------+----+-----+ | UPDATE_AFTER | 4 | 1 | 999 | <-- New value | UPDATE_BEFORE | 2 | 1 | 100 | <-- Old value +-----------------+------------------+----+-----+ -- Source table executes DELETE: DELETE FROM source WHERE id = 2 SELECT __change_type, id, val FROM my_stream; +-----------------+----+-----+ | __change_type | id | val | +-----------------+----+-----+ | DELETE | 2 | 200 | <-- Deleted row, retains field values +-----------------+----+-----+

In APPEND_ONLY mode, __change_type is always INSERT. UPDATE and DELETE operations produce no records.

Actual Effect of the `SHOW_INITIAL_ROWS` Parameter

SHOW_INITIAL_ROWS controls whether existing data in the table at the time of Stream creation is visible. It does not affect the value of __change_type:

`SHOW_INITIAL_ROWS`	Behavior
`'FALSE'` (default)	Data already in the table at Stream creation is invisible; only changes that occur after Stream creation are captured
`'TRUE'`	Data already in the table at Stream creation is exposed as `INSERT` during the first consumption. After consuming the initial snapshot, subsequent changes produce `UPDATE_BEFORE`/`UPDATE_AFTER`/`DELETE` normally

Standard pattern for consuming a STANDARD-mode Stream in a MERGE statement:

MERGE INTO target t USING source_stream s ON t.id = s.id WHEN MATCHED AND s.__change_type = 'UPDATE_AFTER' THEN UPDATE SET t.name = s.name, t.val = s.val WHEN MATCHED AND s.__change_type = 'DELETE' THEN DELETE WHEN NOT MATCHED AND s.__change_type = 'INSERT' THEN INSERT (id, name, val) VALUES (s.id, s.name, s.val); -- UPDATE_BEFORE rows do not need to be processed; MERGE automatically ignores unmatched conditions

Using Table Stream

Prerequisites

Table Stream can be created directly on any regular table; no additional configuration is required.

💡 Tip: If the source table has change_tracking enabled, Table Stream behavior remains consistent. change_tracking is not a prerequisite for creating a Table Stream.

Creating a Table Stream

Table Stream can be created directly on any regular table:

-- Create a test table CREATE TABLE data_change_test (id INT, name STRING); -- Insert initial data INSERT INTO data_change_test VALUES (1, 'apple'); -- Create an APPEND_ONLY type Table Stream CREATE TABLE STREAM data_change_test_stream ON TABLE data_change_test WITH PROPERTIES ('TABLE_STREAM_MODE' = 'APPEND_ONLY');

Querying a Table Stream

-- Insert new data INSERT INTO data_change_test VALUES (2, 'banana'); -- Query the source table (2 records) SELECT * FROM data_change_test; +----+--------+ | id | name | +----+--------+ | 1 | apple | | 2 | banana | +----+--------+ -- Query the Table Stream (only 1 new record) SELECT * FROM data_change_test_stream; +----+--------+ | id | name | +----+--------+ | 2 | banana | +----+--------+

Consuming a Table Stream

When consuming a Table Stream using DML statements, the offset automatically updates:

-- Create a target table CREATE TABLE data_change_test_offset (id INT, name STRING); -- Consume the Stream data (offset automatically updates) INSERT INTO data_change_test_offset SELECT id, name FROM data_change_test_stream; -- Query the Stream again (data has been consumed, returns empty) SELECT * FROM data_change_test_stream; +----+------+ | id | name | +----+------+ +----+------+

WHERE conditions do not prevent offset advancement: If a DML statement consuming a Stream has a WHERE condition, filtered-out data is not retained for the next consumption -- the offset advances to the latest position regardless, and filtered change records are permanently lost. If you want to process only part of the data without discarding the rest, consume the full stream into a staging table first, then filter from the staging table:

-- Correct approach: consume the full stream into a staging table first INSERT INTO staging SELECT * FROM my_stream; -- Then process from the staging table by condition INSERT INTO target SELECT * FROM staging WHERE value > 100;

Deleting a Table Stream

DROP TABLE STREAM IF EXISTS data_change_test_stream;

Data Change Visibility Timeliness

Data Write Method	Table Stream Visibility Timeliness
DML (INSERT/UPDATE/DELETE)	Immediately visible after task completes successfully
Bulkload	Immediately visible after task completes successfully
Streaming Ingestion (Ingestion Service)	Visible after changes are committed, by default every 1 minute

⚠️ Note: For streaming writes, SQL queries on the target table itself show data in real time. This constraint only applies to the visibility timeliness of a Table Stream based on that target table.

Relationship Between Table Stream and Dynamic Table

Dimension	Table Stream	Dynamic Table
Positioning	Low-level CDC mechanism that captures table change data	High-level data processing feature that performs data transformation based on incremental computation
Stores Data	No, only records the offset	Yes, stores computation results
Performs Computation	No, only returns change records	Yes, executes defined SQL logic
Refresh Method	Returns changes on query; updates offset on consumption	Automatically refreshes at configured intervals
Typical Scenarios	Change data capture, real-time data synchronization	Data warehouse layered processing, metric aggregation

Collaborative Working Mode

In practice, Table Stream and Dynamic Table often work together:

Source Table --[Table Stream]--> Capture Changes --[Dynamic Table]--> Transform & Aggregate --> Target Table

ETL Data Processing Chain: Create a Table Stream on the source table to capture change data, then use a Dynamic Table to perform transformation and aggregation on these changes
Multi-level Incremental Computation: Build a series of Dynamic Tables, where each Dynamic Table processes the incremental data produced by the previous table in sequence
Real-time Data Analysis: Use Table Stream to capture business system data changes in real time, then use Dynamic Table for real-time analysis and computation

Best Practices

1. Create Directly

Table Stream can be created directly on any regular table; no additional configuration is required:

-- Create Table Stream directly CREATE TABLE STREAM my_stream ON TABLE source_table WITH PROPERTIES ('TABLE_STREAM_MODE' = 'STANDARD');

2. Choose the Right Type

If you only need to capture newly added data (e.g., log tables, event tables), use APPEND_ONLY type for better performance
If you need complete change data (including updates and deletes), use STANDARD type

3. Consume Promptly

Table Stream's change data depends on the source table's Time Travel retention period. If not consumed for an extended period, the source table's historical versions may be cleaned up, causing the Table Stream to be unable to obtain complete change data.

4. Monitor Offset Status

Use DESC TABLE STREAM to check the current offset status of a Table Stream:

stale = true means the source table's historical versions have been cleaned up, and the Table Stream may not be able to obtain complete changes
offset of -1 means no data has been consumed yet

Notes

Table Stream can be created directly on any regular table; no additional configuration is required
When the source table is deleted, the associated Table Stream becomes invalid
Table Stream offset updates only occur on DML consumption; queries alone do not update the offset
In STANDARD mode, UPDATE produces UPDATE_BEFORE + UPDATE_AFTER two rows, and DELETE produces a DELETE record, regardless of the SHOW_INITIAL_ROWS parameter
CREATE OR REPLACE TABLE makes the associated Stream stale: Executing CREATE OR REPLACE TABLE (table rebuild) on the source table clears the table's historical versions, causing all Table Streams based on that table to immediately become stale (stale = true) and unable to obtain complete change data. If you need to modify the table structure, prefer using ALTER TABLE instead of CREATE OR REPLACE TABLE.
