Connection Object

A Connection is an object in Lakehouse that stores authentication credentials for third-party services, enabling Lakehouse to securely access external data sources (object storage, Kafka, HDFS, AI models, etc.) without exposing plaintext passwords or keys in SQL.

Think of a Connection as Lakehouse's "credential vault" — you store your cloud storage keys, Kafka addresses, and other credentials inside it. When accessing external data, you simply reference the Connection by name, and the system uses the saved credentials automatically.

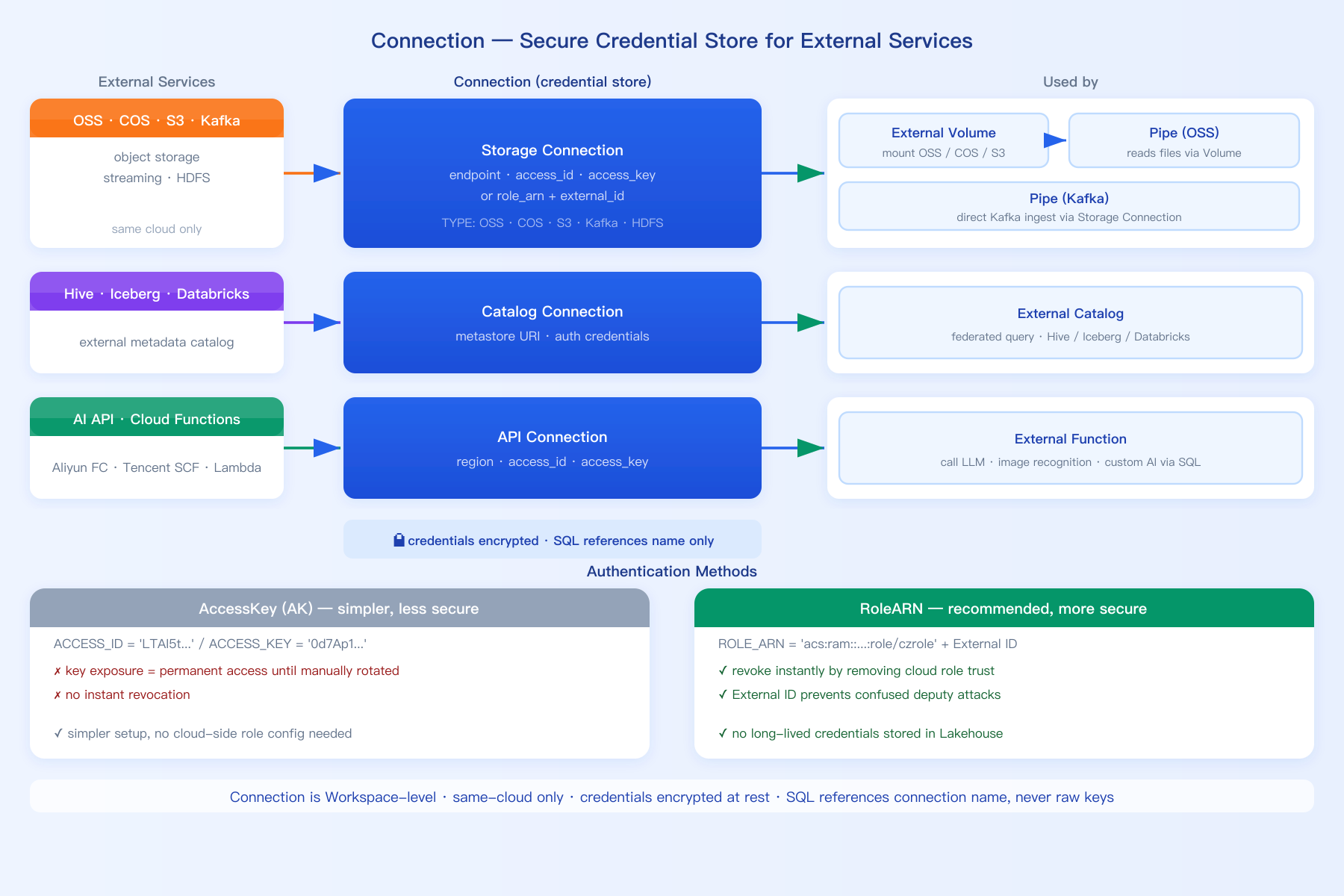

Connection Types

TypePurposeUse Case
Storage ConnectionConnect to object storage (OSS/COS/S3), Kafka, HDFSMount external storage to create an External Volume, or ingest Kafka data
API ConnectionConnect to external API services (AI models, etc.)Create external functions to call LLMs, image recognition services, etc.
Catalog ConnectionConnect to external data catalogs (Hive, etc.)Create an External Catalog for federated queries

Choosing the Right Connection

ScenarioRecommendedReason
Existing OSS/S3 data you don't want to migrateStorage Connection + External VolumeDirect mount, zero data copy
Real-time data consumption from KafkaStorage Connection + PipeContinuous ingestion of Kafka streaming data
Call an AI model (text generation / vectorization)API Connection + External FunctionCall AI services directly from SQL
Query a Hive data warehouseCatalog Connection + External CatalogFederated query, data stays in place

Core Mechanisms

Credential security: Keys stored in a Connection are encrypted. SQL statements only reference the Connection name — no plaintext credentials are exposed.

Cross-cloud restriction: Storage Connections do not support cross-cloud-provider creation. For example, a Lakehouse instance running on Alibaba Cloud cannot create a Connection to Tencent Cloud COS.

Role-based authorization (RoleARN): Compared to AK key-based access, RoleARN is more secure — Lakehouse assumes a role in the customer's cloud account to access data. The customer can revoke the role at any time, and the approach supports External ID for an additional layer of verification.

Quick Examples

Create a Storage Connection (AK Method)

-- Create an Alibaba Cloud OSS connection (AK key method) CREATE STORAGE CONNECTION IF NOT EXISTS my_oss_conn TYPE oss ENDPOINT = 'oss-cn-hangzhou.aliyuncs.com' ACCESS_ID = 'LTAI5tMmbq1Ty1xxxxxxxxx' ACCESS_KEY = '0d7Ap1VBuFTzNg7gxxxxxxxxxxxx'; -- View Connection details DESC CONNECTION my_oss_conn; -- Result: -- +--------------------+------------------+ -- | info_name | info_value | -- +--------------------+------------------+ -- | name | my_oss_conn | -- | type | OSS | -- | enabled | ENABLED | -- | ACCESS_ID | LTAI5tMm... | -- | ENDPOINT | ... | -- +--------------------+------------------+

Create a Storage Connection (RoleARN Method)

-- Create an Alibaba Cloud OSS connection (role-based authorization) CREATE STORAGE CONNECTION my_oss_conn_role TYPE oss REGION = 'cn-hangzhou' ROLE_ARN = 'acs:ram::1222808864xxxxxxx:role/czudfrole' ENDPOINT = 'oss-cn-hangzhou-internal.aliyuncs.com'; -- View the External ID (needed to configure the trust policy on the cloud side) DESC CONNECTION my_oss_conn_role; -- The result includes external_id, which must be configured in the Alibaba Cloud RAM role trust policy

Create an API Connection

-- Create an Alibaba Cloud Function Compute API connection CREATE API CONNECTION my_fc_conn TYPE aliyun_fc REGION = 'cn-hangzhou' ACCESS_ID = 'LTAI5tMmbq1Ty1xxxxxxxxx' ACCESS_KEY = '0d7Ap1VBuFTzNg7gxxxxxxxxxxxx';

Troubleshooting

Issue 1: Cross-cloud Connection creation fails

Problem: A Lakehouse instance on Alibaba Cloud attempts to create a Connection to Tencent Cloud COS.

Symptom: Error: cross-cloud connection not supported.

Solution:

  • Storage Connections do not support cross-cloud-provider creation.
  • An Alibaba Cloud Lakehouse can only connect to Alibaba Cloud OSS.
  • If you need to access multi-cloud data, first export the data from the target cloud storage, then import it into the object storage of the cloud where Lakehouse is running.

Issue 2: RoleARN method missing External ID configuration

Problem: After creating a Connection with RoleARN, accessing external storage returns a permission error.

Symptom: AccessDenied or STS token expired.

Solution:

  • After creating the Connection, use DESC CONNECTION to retrieve the External ID.
  • In the cloud role's trust policy, add the External ID to the sts:ExternalId condition.
  • Confirm that the Lakehouse instance's account ID has been added to the role's trusted principals.

Issue 3: AK key exposure risk

Problem: A Connection was created using the AK key method, but the AccessKey was accidentally leaked.

Symptom: External storage is accessed by unauthorized parties.

Solution:

  • Prefer the RoleARN method over AK keys.
  • With RoleARN, you can revoke the role's permissions on the cloud side at any time without rotating keys.
  • Rotate AccessKeys regularly and restrict key permissions to the minimum required (principle of least privilege).

Cost Considerations

Storage Costs

  • A Connection only stores metadata (authentication information), so storage costs are negligible.

Compute Costs

  • A Connection itself does not incur compute charges.
  • Accessing external data through a Connection may incur data transfer fees from the cloud provider.
  • Reading external storage files via an External Volume consumes VCluster CRU.

Lifecycle Management

Create Connection → Associate with usage (Volume/Pipe/External Function) → Rotate keys → Drop Connection ↓ ↓ ↓ ↓ Store credentials External data access Update AccessKey DROP CONNECTION

Create and Drop

-- Create a Connection CREATE STORAGE CONNECTION my_conn TYPE oss ENDPOINT = 'oss-cn-hangzhou.aliyuncs.com' ACCESS_ID = '...' ACCESS_KEY = '...'; -- List all Connections SHOW CONNECTIONS; -- View Connection details DESC CONNECTION my_conn; -- Drop a Connection DROP CONNECTION my_conn;
