File Storage (Volume)

A Volume is a storage object for managing files in Lakehouse, used to store files in various formats such as CSV, Parquet, JSON, images, and more. With a Volume, you can query file contents directly using SQL, upload and download files, or load files into tables.

Think of a Volume as the "file system" of Lakehouse — you can put files in, query them directly, or import them into tables. Unlike external object storage (OSS/S3), a Volume is a storage object natively managed by Lakehouse and requires no additional configuration to use.

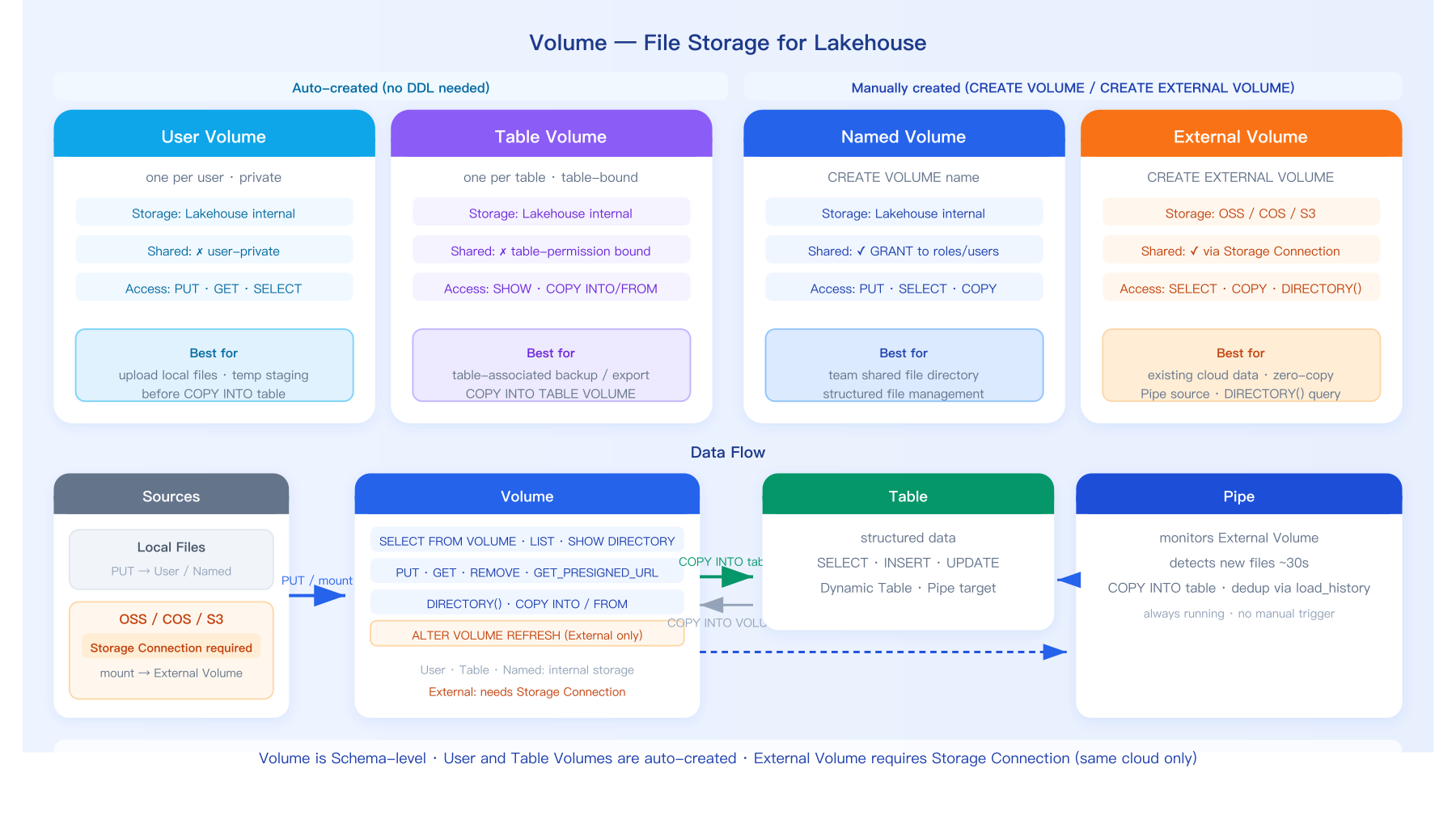

Volume Types

Volumes are divided into two major categories: internal Volumes and external Volumes:

Type	Category	Creation	Storage Location	Use Case
User Volume	Internal	Created automatically	Internal storage	Upload local files, temporarily stage data for processing
Table Volume	Internal	Created automatically (one per table)	Internal storage	Store ETL files associated with a specific table
Named Volume	Internal	CREATE VOLUME (explicitly created by user)	Internal storage	Team file sharing, user-managed lifecycle
External Volume	External	CREATE EXTERNAL VOLUME	External storage (OSS/COS/S3)	Access existing cloud storage data without migration

Internal Volume data is stored inside Lakehouse and billed according to Lakehouse storage rates. User Volumes and Table Volumes are created automatically by the system; Named Volumes are explicitly created by users who manage their own lifecycle.

External Volume data stays in external object storage without migration — Lakehouse only stores path metadata.

Choosing the Right Volume

Scenario	Recommended	Reason
Upload CSV/Parquet from local to Lakehouse	User Volume	Ready to use out of the box, no configuration needed
Existing OSS/S3 data you don't want to migrate	External Volume	Direct mount, zero data copy
Shared file directory for a team	Named Volume	Configurable sharing permissions
ETL intermediate files associated with a table	Table Volume	Bound to table permissions, automatically managed

Core Mechanisms

User isolation: User Volumes are private to each user and cannot be accessed by others.

Table association: Each table is automatically associated with a Table Volume. Operations on a Table Volume require the corresponding table's permissions.

External mounting: External Volumes mount OSS/COS/S3 via a Storage Connection. Data is not imported into Lakehouse — it is read directly from external storage.

Volume File Protocol

In addition to SQL keyword syntax such as FROM USER VOLUME and FROM VOLUME vol_name, Lakehouse provides a Volume file protocol for referencing files inside a Volume within string parameters. This protocol is primarily used for:

• Specifying code package paths when creating external functions (CREATE EXTERNAL FUNCTION ... USING FILE/ARCHIVE)
• session.file.put() / session.file.get() calls in the Zettapark SDK
• Configuring Kerberos authentication file paths (KERBEROS_KRB5_CONFIG_PATH, KERBEROS_KEYTAB_PATH)

Protocol Format Overview

Volume Type	Protocol Format	Example
External / Named Volume	volume://[workspace.][schema.]volume_name/path	volume://my_vol/udfs/upper.jar
User Volume	volume:user://~/path	volume:user://~/upper.jar
Table Volume	volume:table://[workspace.][schema.]table_name/path	volume:table://my_table/data.csv

Format Details

External / Named Volume

volume://[{workspace}.][{schema}.]{volume_name}/{path_to_file}

• workspace, schema: Optional. When omitted, the current context defaults are used.
• volume_name: The name of the Volume.
• path_to_file: The relative path to the file within the Volume.

-- External function referencing a JAR in a Named Volume CREATE EXTERNAL FUNCTION upper_udf(s STRING) RETURNS STRING AS 'com.example.UpperUDF' USING CONNECTION my_api_conn USING FILE 'volume://fc_volume/udfs/upper.jar';

User Volume

volume:user://~/{path_to_file}

• user: Fixed keyword indicating the User Volume protocol.
• ~: Fixed value representing the currently logged-in user.
• path_to_file: The relative path to the file within the User Volume.

-- External function referencing a code package in a User Volume CREATE EXTERNAL FUNCTION sentiment(s STRING) RETURNS STRING AS 'com.example.Sentiment' USING CONNECTION my_api_conn USING ARCHIVE 'volume:user://~/sentiment.zip';

# Zettapark SDK: upload a file to User Volume session.file.put("local/data.csv", "volume:user://~/csv/") # Download a file from User Volume session.file.get("volume:user://~/png/photo.png", "tmp/")

Table Volume

volume:table://[{workspace}.][{schema}.]{table_name}/{path_to_file}

• table: Fixed keyword indicating the Table Volume protocol.
• workspace, schema: Optional. When omitted, the current context defaults are used.
• table_name: The name of the associated table.
• path_to_file: The relative path to the file within that table's Table Volume.

-- External function referencing a code package in a Table Volume CREATE EXTERNAL FUNCTION process(s STRING) RETURNS STRING AS 'com.example.Process' USING CONNECTION my_api_conn USING FILE 'volume:table://my_schema.my_table/upper.jar';

SQL Keyword Syntax vs. File Protocol

These two syntaxes serve different purposes and should not be mixed:

Purpose	Syntax Form	Example
Operate on Volume files within a SQL statement	Keyword syntax	FROM USER VOLUME, FROM VOLUME vol_name
Reference a Volume file path in a string parameter	File protocol	'volume:user://~/file.jar'

Keyword syntax is used in SQL commands such as COPY INTO, SELECT FROM VOLUME, PUT, GET, and LIST. The file protocol is used in scenarios that require passing a string path (function definitions, SDK calls, configuration parameters).

Quick Examples

Upload a File and Query It

-- Upload a local CSV file to User Volume PUT '/Users/Downloads/taxi_zone_lookup.csv' TO USER VOLUME; -- View uploaded files SHOW USER VOLUME DIRECTORY; -- Result: -- +----------------------+-----+------+----------------------------+ -- | relative_path | url | size | last_modified_time | -- +----------------------+-----+------+----------------------------+ -- | taxi_zone_lookup.csv | | 12331| 2026-05-21T10:00:00.000Z | -- +----------------------+-----+------+----------------------------+ -- Query file contents directly (no need to import into a table) SELECT * FROM USER VOLUME USING CSV OPTIONS ('header' = 'true') FILES ('taxi_zone_lookup.csv') LIMIT 3; -- Result: -- +------------+-------------+-----------------------+--------------+ -- | LocationID | Borough | Zone | service_zone | -- +------------+-------------+-----------------------+--------------+ -- | 1 | EWR | Newark Airport | EWR | -- | 2 | Queens | Jamaica Bay | Boro Zone | -- | 3 | Bronx | Allerton/Pelham Gardens| Boro Zone | -- +------------+-------------+-----------------------+--------------+

Import a File into a Table

-- Create the target table CREATE TABLE IF NOT EXISTS taxi_zones ( LocationID INT, Borough STRING, Zone STRING, service_zone STRING ); -- Import data from User Volume COPY INTO taxi_zones FROM USER VOLUME USING CSV OPTIONS ('header' = 'true') FILES ('taxi_zone_lookup.csv'); -- Verify the import result SELECT COUNT(*) AS cnt FROM taxi_zones; -- Result: -- +-----+ -- | cnt | -- +-----+ -- | 265 | -- +-----+

File Query and Access Functions

In addition to COPY INTO and SELECT FROM VOLUME, Lakehouse provides the following functions and commands for working with files in a Volume:

LIST — List Files

Lists files in a Volume, with support for subdirectory filtering and regex matching. Compared to SHOW VOLUME DIRECTORY, LIST supports regex filtering and is better suited for scripted processing.

-- List all files in User Volume LIST USER VOLUME; -- List Parquet files in a specific subdirectory of an external Volume LIST VOLUME my_oss_volume SUBDIRECTORY 'orders/2024/' REGEXP = '.*\.parquet'; -- List files in a Table Volume LIST TABLE VOLUME my_table;

For detailed syntax, see: LIST

---

DIRECTORY() — Query File Metadata

DIRECTORY() is a table function that returns the file directory of a Volume as a virtual table, usable in SELECT statements. It is well suited for combining with GET_PRESIGNED_URL to generate access links in bulk, or for filtering specific files before further processing.

-- View metadata for all files in an external Volume SELECT * FROM DIRECTORY(VOLUME my_oss_volume); -- Returned columns: relative_path, size, last_modified, file_url, etc. -- Filter files by format SELECT relative_path, size FROM DIRECTORY(VOLUME my_oss_volume) WHERE relative_path LIKE '%.parquet';

---

GET_PRESIGNED_URL() — Generate Pre-signed Access Links

Generates a time-limited pre-signed URL for a file in a Volume, allowing external applications (browsers, Remote Functions, AI services, etc.) to access the file directly without exposing storage credentials.

-- Generate a pre-signed URL valid for 1 hour for a single file SELECT GET_PRESIGNED_URL(VOLUME my_oss_volume, 'images/photo.jpg', 3600) AS url; -- Bulk-generate pre-signed URLs for all images in User Volume SET cz.sql.function.get.presigned.url.force.external = true; SELECT relative_path, GET_PRESIGNED_URL(USER VOLUME, relative_path, 3600) AS url FROM (SELECT relative_path FROM (LIST USER VOLUME)) WHERE relative_path LIKE '%.jpg'; -- Bulk-generate using DIRECTORY() (External Volume) SELECT GET_PRESIGNED_URL(VOLUME my_oss_volume, relative_path, 3600) AS url FROM DIRECTORY(VOLUME my_oss_volume);

For detailed syntax, see: GET_PRESIGNED_URL

---

Function Quick Reference

Function / Command	Purpose	Applicable Volume Types
SHOW VOLUME DIRECTORY	View file list (interactive)	Named / External
SHOW TABLE VOLUME DIRECTORY	View file list for a table-associated Volume	Table Volume
SHOW USER VOLUME DIRECTORY	View personal file list	User Volume
LIST	List files with regex filtering	All
DIRECTORY()	Query file metadata as a table	External (must be enabled)
GET_PRESIGNED_URL()	Generate time-limited file access links	All

Relationship Between Volume and Pipe

When Pipe continuously ingests data from object storage, it relies on a Volume to access files:

Object Storage (OSS/COS/S3) ↑ [Volume] ── mount point, file access ↑ [Pipe] ── continuous ingestion pipeline ↑ [Table] ── Lakehouse structured data

• A Volume provides file access capability by mounting external object storage.
• A Pipe provides continuous streaming capability, monitoring a Volume for new files and automatically importing them into a table.

-- Typical usage: Volume + Pipe combination CREATE EXTERNAL VOLUME my_vol LOCATION 'oss://bucket/data/' USING CONNECTION oss_conn; CREATE PIPE my_pipe VIRTUAL_CLUSTER = 'default' INGEST_MODE = 'LIST_PURGE' AS COPY INTO orders FROM VOLUME my_vol USING CSV;

Relationship Between Volume and Table

There is a bidirectional data flow between Volumes and Tables:

Object Storage (OSS/COS/S3) ↑↓ [Volume] ── mount point, file access ↑↓ COPY INTO ── bidirectional data transfer ↑↓ [Table] ── Lakehouse structured data

-- Import from Volume into a table COPY INTO orders FROM VOLUME my_vol USING CSV; -- Export from a table to a Volume COPY INTO VOLUME my_vol SUBDIRECTORY 'export/' FROM orders FILE_FORMAT = (TYPE = PARQUET);

FAQ 1: Files uploaded but not visible in queries

Problem: After uploading a file with PUT, running SELECT FROM USER VOLUME returns no data.

Symptom: The file list shows the file as uploaded, but the query returns an empty result.

Solution:

• Files uploaded with PUT are immediately available, but you must specify the correct filename (case-sensitive).
• Use SHOW USER VOLUME DIRECTORY to confirm the filename and path.

FAQ 2: External Volume file list not updating

Problem: New files were uploaded to OSS, but SELECT FROM DIRECTORY(VOLUME ...) does not show them.

Symptom: External storage has new files, but Volume query results are stale.

Solution:

• External Volumes do not automatically refresh the directory cache by default.
• Manually run ALTER VOLUME <name> REFRESH to refresh the directory.
• Alternatively, enable DIRECTORY = (ENABLE = TRUE, AUTO_REFRESH = TRUE) at creation time.

FAQ 3: User Volume files cannot be shared

Problem: Files uploaded by user A cannot be accessed by user B.

Symptom: User B runs SELECT FROM USER VOLUME and gets an empty result.

Solution:

• User Volumes are private to each user and cannot be accessed by others.
• To share files, use a Named Volume (CREATE VOLUME) or an External Volume.

Cost Considerations

Storage Costs

• Files in User Volumes and Table Volumes are stored in Lakehouse's internal object storage and billed based on actual space used.
• Data in External Volumes is stored in external object storage (OSS/COS/S3) and billed at the cloud provider's standard rates.
• After importing files from a User Volume into a table, the files remain in the Volume. Delete them manually if you want to reduce storage costs.

Compute Costs

• Querying Volume files directly (SELECT FROM VOLUME) consumes VCluster CRU.
• COPY INTO data ingestion consumes VCluster CRU, proportional to data volume and format complexity.

Lifecycle Management

Create Volume (auto/manual) → Upload/mount files → Query or import → Clean up files → Drop Volume (Named/External only) ↓ ↓ ↓ ↓ ↓ User/Table auto-created PUT/external storage SELECT/COPY REMOVE DROP VOLUME

Create and Drop

-- User Volumes and Table Volumes are created automatically — no manual action needed -- Create a Named Volume (team sharing) CREATE VOLUME shared_files; -- Create an External Volume (mount OSS) CREATE EXTERNAL VOLUME my_oss_vol LOCATION 'oss://my-bucket/data/' USING CONNECTION my_oss_conn DIRECTORY = (ENABLE = TRUE); -- Drop a Volume DROP VOLUME shared_files; DROP EXTERNAL VOLUME my_oss_vol;
